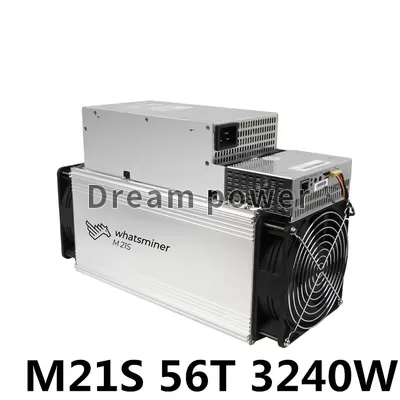

Whatsminer M21S 56Th 3240W SHA-256 Second Hand MicroBT Mining Machine Asic Whatsminer
Specification
Certification | ce |
Brand Name | Whatsminer |
Algorithm | SHA256 |
Power Consumption | 3240W |
Hashrate | 56T |
Encryption | Yes |
Video Memory Capacity | ≥ 1024MB |
Chipset Manufacturer | ATI |
Type | BTC miner |
Products Status | Stock, Used |
Rating Power | > 1000W |
Output Interface Type | DVI |
Place of Origin | Guangdong,China |
Material | metal |
Style | rectangle |
Memory Interface | 128 Bit |
Memory Clock(Mhz) | 60Hz |
Interface Type | USB 3.0 |
Video Memory Type | DDR5 |
Manufacturer | whatsminer M21s |
Warranty(Year) | Other |
After-sales Service | Others |
Size | 188 x 130 x 352mm |
Coins | BTC BCH BSV |
Gross wight | 12KG |
Interface | Etherent |
Voltage | 200-240V |
Temperature | 5 - 45 °C |
Humidity | 5 - 95 % |
On May 19, 2019, the MicroBT New Product Launch Conference was held at the first JW Marriott Hotel in Chengdu China with the theme of “Extreme Win-Win, Success Again”. Yang Zuoxing, the founder and CEO of MicroBT, officially released the latest generation of bitcoin miner Whatsminer M20 series.The latest generation of bitcoin miner Whatsminer M20 series released by MicroBT includes five models, all of which adopt the Samsung 8nm chips.
Brief introduction:
Whatsminer M20: Hashrate 45T, power consumption 48W/T, 10A socket compatible
Whatsminer M21B (welfare for old customers): MicroBT provides hashboard compatible to M3, and users can assembly with M3 components so that the control board, power supply, and casing of Whatsminer M3 can be reused to cut cost and improve utilization. Hashrate 28T, power consumption ratio 60W and 10A socket compatible.
Whatsminer M20S (high hashrate): the highest hashrate and the best power consumption ratio, hashrate 68T, power consumption ratio 48W, 16A socket is needed(refer to: Evaluation on MicroBT Whatsminer M20S Bitcoin Miner).
Product Appearance
The hash board is designed to be compatible with that of Whatsminer M3, so that the user can purchase the hashboard separately to assemble with M3 components and reuse the control board, power supply, casing and other accessories of M3 miner, which can reduce the costs of upgrading and improve the utilization rate.
Fan and Air Circulation
Air inlets are set on the side of the control board and power interface with a metal shield. The fans at the air outlets do not have protective shields. Both Whatsminer M20 and M10 models adopt the same control boards with identical interfaces. M20s comes with a new power supply unit, P20-12-3350-V1, to provide 12V 265A and 12V 12A DC output with a peak power consumption of 3360W.
It makes use of high-quality materials, which shows the manufacturers paid attention to detail. Its transformer uses the traditional dual voltage mode Whatsminer is famous for, and it is divided into the upper and lower part. With a two-stage low pass, two PFC enable voltage rise, and two LLC cause voltage drop. LLC has higher efficiency for voltage drop with fewer losses.
